智慧油田-数字化指挥中心（野外拓展式撬装指挥中心）

介绍视频

ZH-CN

独立可移动的指挥中心

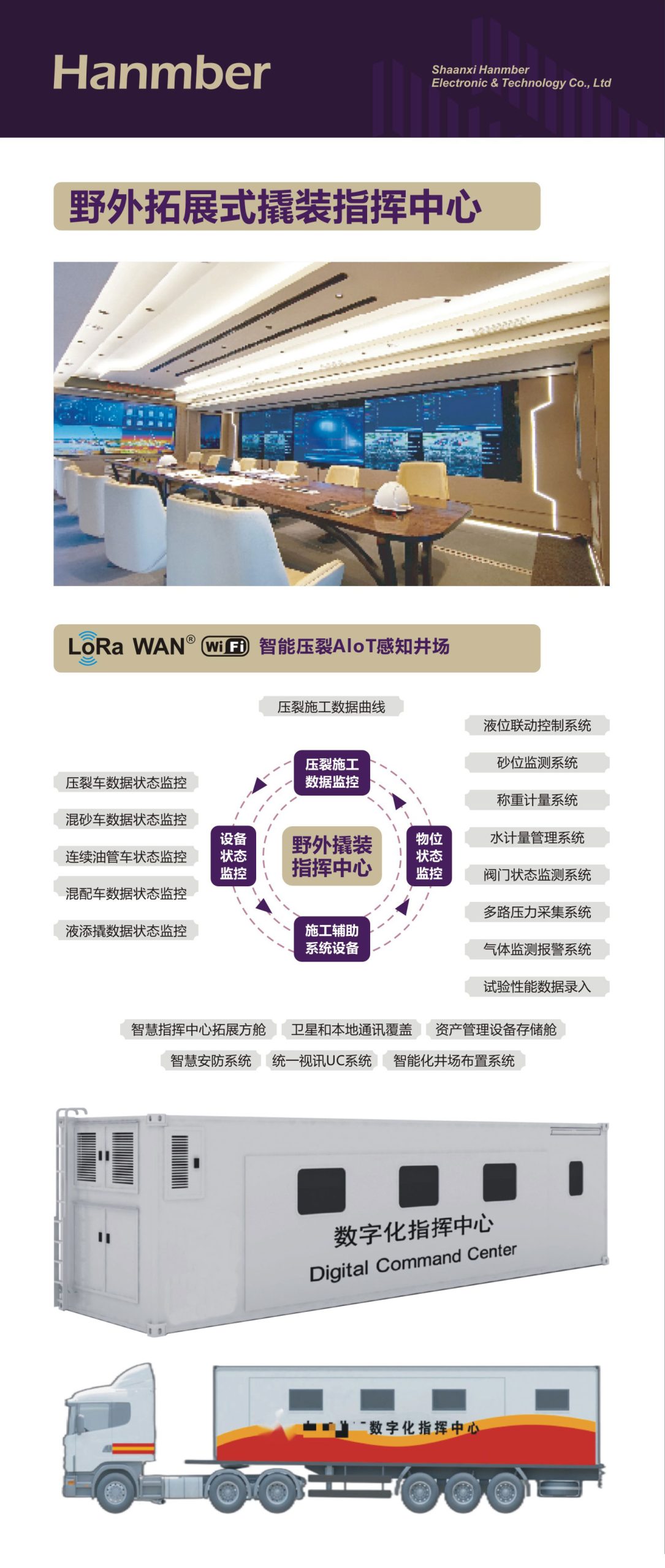

野外拓展式撬装指挥中心

撬装式智慧指挥中心拓展方舱DCC-S-1.00/A-1100

压製施工数据监控

压裂施工数据曲线

设备状态监控

压裂车数据状态监控

混砂车数据状态监控

连续油管车状态监控

混配车数据状态监控

液添撬数据状态监控

物位状态监控

液位联动控制系统

砂位监测系统

称重计量系统

水计量管理系统

阀门状态监测系统

多路压力采集系统

气体监测报警系统

试验性能数据录入

施工辅助系统设备

智慧指挥中心拓展方舱

卫星和本地通讯覆盖

资产管理设备存储舱

智慧安防系统

统一视讯UC系统

智能化井场布置系统

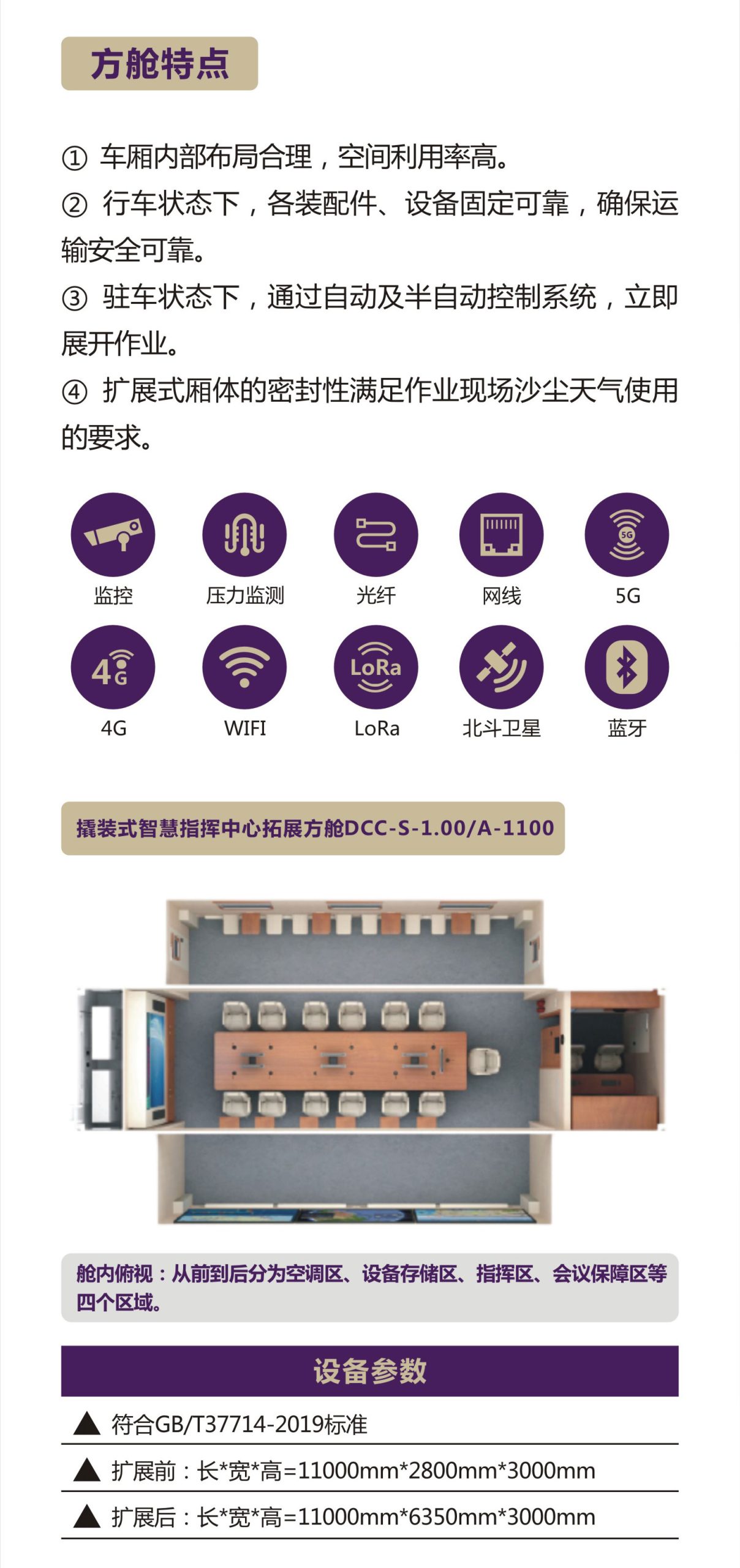

方舱特点

①车厢内部布局合理,空间利用率高

②行车状态下,各装配件、设备固定可靠,确保运输安全可靠

③驻车状态下,通过自动及半自动控制系统,立即展开作业

④扩展式厢体的密封性满足作业现场沙尘天气使用的要求

舱内俯视:从前到后分为空调区、设备存储区、指挥区、会议保障区等四个区域。

设备参数

符合GB/T37714-2019标准

扩展前:

长*宽*高=11000mm*2800mm*3000mm

扩展后:

长*宽*高=11000mm*6350mm*3000mm

监控

压力监测

光纤

网线

5G

4G

WIFI

LoRa

北斗卫星

蓝牙

野外拓展式撬装指挥中心

运输,安装方便

制造工期短,免基地

钢骨结构,防风,防震

采用空断热设计,空调

隔音隔热性佳

外观喷漆定制标志

指挥中心内部装饰,仅供参考,可根据实际情况进行软装。

EN

Independent Mobile Command Center

Field-Deployable Modular Command Center

Modular Smart Command Center Expansion Cabin DCC-S-1.00/A-1100

Pressure Construction Data Monitoring
Fracturing Construction Data Curves
Equipment Status Monitoring
Fracturing Vehicle Data Monitoring

Blending Truck Data Monitoring

Coiled Tubing Truck Data Monitoring

Mixing Truck Data Monitoring

Liquid Additive Skid Data Monitoring

Material Level Monitoring
Liquid Level Linkage Control System
Sand Level Monitoring System
Weighing and Metering System
Water Metering Management System
Valve Status Monitoring System
Multi-channel Pressure Acquisition System
Gas Monitoring and Alarm System
Test Performance Data Input

Construction Support System Equipment

Smart Command Center Expansion Cabin

Satellite and Local Communication Coverage

Asset Management Storage Compartment

Smart Security System

Unified Video UC System

Intelligent Well Layout System

Key Features of the Expansion Cabin:

① The internal layout is optimized for maximum space efficiency, ensuring ease of operation and equipment storage.

② All components and equipment are securely fastened during transit, ensuring safety and reliability.

③ The automatic and semi-automatic control systems allow for immediate operational deployment upon arrival at the site.

④ The expandable cabin is sealed to meet the demands of dusty and sandy weather conditions during field operations.

Overhead View of the Cabin:The cabin is divided into four areas from front to back: air conditioning area, equipment storage area, command area, and conference support area.

Equipment Specifications:

Complies with GB/T37714-2019 standards

Dimensions (before expansion):
Length * Width * Height = 11000mm * 2800mm * 3000mm

Dimensions (after expansion):
Length * Width * Height = 11000mm * 6350mm * 3000mm

Monitoring Systems

Pressure monitoring

Fiber optics

Ethernet

5G

4G

WIFI

LoRa

BeiDou Satellite

Bluetooth

Field-Deployable Modular Command Center

Easy Transport and Installation

Short Manufacturing Cycle, No Base Required

Steel Frame Structure

Wind-resistant and shockproof design.

Thermal Insulation Design with Air Conditioning

Excellent Soundproofing and Insulation

Custom Paintwork with Branding

Interior decoration is for reference only and can be customized with soft furnishings based on actual requirements.
